CDR15-EBD
|
|

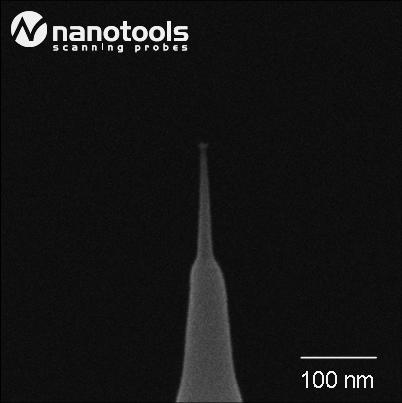

15 nm full carbon CD probe. Low vertical edge height, constant edge radius maintains resolution over tip life.
Ordercode: CDR15_NCHR_3
The nanotools CDR-EBD probes for 3D reference and hybrid metrology: with a full range of CDR-EBD probes from 130 nm down to 15 nm, this is pushing the limits of 3D-AFM technology for measuring tight dimensions and extending its capability for future nodes. It brings EBD´s key strength: precise tip orientation, precise control in tip dimensions (length, total diameter, vertical edge height, overhang) and large volume production to undercut applications. These tips do not have a wear resistance coating - but made from bulk wear resistance diamond like carbon.
Tip Spec
|
|
| Sketch Tip Spec |
| nominal | range | |
| Material | HDC/DLC | |
| Tip vertical edge height /VEH |
10 nm | < 15 nm |
| Tip eff. length /l |
150 nm | 150-200 nm |
| Tip total width /d |
15 nm |
+/- 5 nm |
| Tip overhang /OH |
7 nm | > 5 nm |
| Tip edge radius /r |
5 nm | < 10 nm |
| Tilt compensation /θ |
3 deg | +/- 0.5 deg |
| Pyramide height /PH |
15 µm | 10-15 µm |
| Tip set back /TSB |
15 µm | 5-25 µm |
Cantilever Spec
|
|
| Sketch Cantilever Spec |
| nominal | range | |
| Material |
Si |
|
| Shape | NT-TESPA |
|
| Length /L |
125 µm | +/- 3 µm |
| Width /W |
30 µm | +/ 1 µm |
| Thickness /T |
4 µm |
3-5 µm |
| Force Const. /k |
42 N/m |
35-45 µm |
| Res. Freq. /f |
320 kHz |
300-340 kHz |
Coating
tip side: none
back side: reflex
